Nomadic Cooling 3000 12v/24v AC

• The 3000 battery-powered air-conditioners are specifically designed for individuals who travel off the grid.
• All Nomadic Cooling air-conditioners are powered by DC 12V/24V/48V batteries. Preferably lithium but not mandatory.
• This is a stand-alone air-conditioner. You do not need to connect to the engine to operate the air-conditioner.
• All Nomadic Cooling air-conditioners are non-polluting, and highly efficient units.
• All Nomadic Cooling battery-powered air-conditioners operate at or below  60dBA. Plus, the added benefit of the vibration-free operation.
•  An intelligent microprocessor control system, allows the user to set the temperature based on the desired temperature.
• Includes multiple built-in protection functions such as pressure alarm, power high/low voltage, motor over-current, and motor temperature protection.

Specs:

• Voltage: 12V  (Max power consumption tested over 100 Fahrenheit)
• Power Usage: 12V @ 3 / 100A
• Fan Mode
• 3A-5A
• Eco Mode
• 35A-55A @ 85 Fahrenheit
• Powerful Mode
• 65A Max Cool @ 85 Fahrenheit
• 105A Max Cool @ 120 Fahrenheit
• Cooling Capacity: 11,830 BTU
• Net Weight: 27.69kg 61.05lbs
• Size: 37.75 x 31 x 7 (Please see blog post here for full dimensions)
• Opening Size: 14x14
• Noise Volume: 60dBa
• Refrigerant: R-134a @ 600g *gas is pre-filled before delivery.
• Wind Volume: Max wind  volume  1050ft  6  speed
• Battery Powered: 100%  stand-alone  Battery-powered  unit
  • Battery not included
• Easy Installation: Easily fits any new or existing  14x14  rooftop opening.
  • See blog post or video for installation instructions

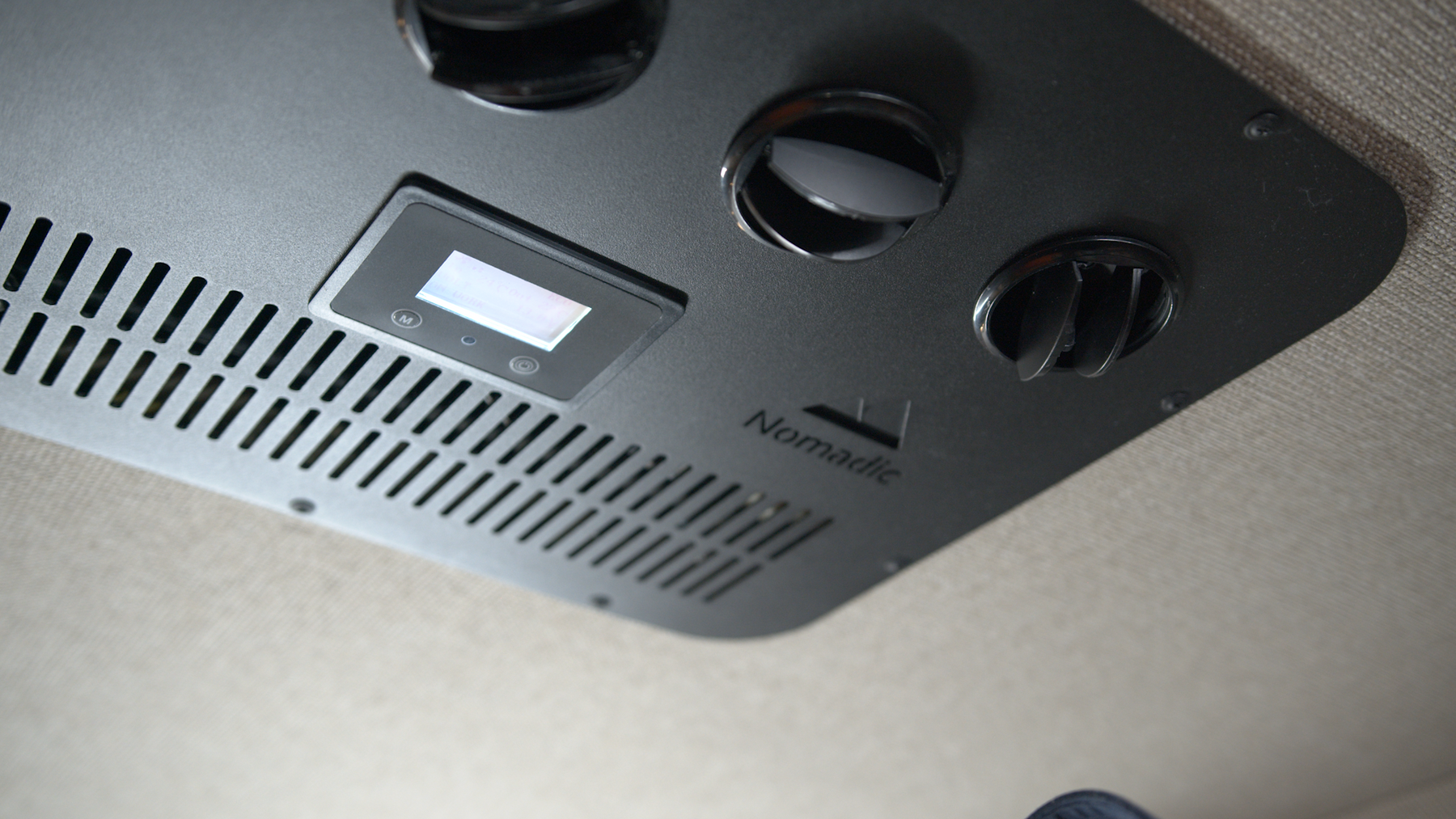

• Interior Vent: Use a Nomadic Cooling Vent or  Design/incorporate your own.
• Standard Vent: 15 3/4" L x 15 3/4" W
• Revel Plate (Special Request only): 20 3/4" L x 22 1/2" W
• Other/Old Style Plates (Special Request Only): 19 3/4" L x 15 3/4" W

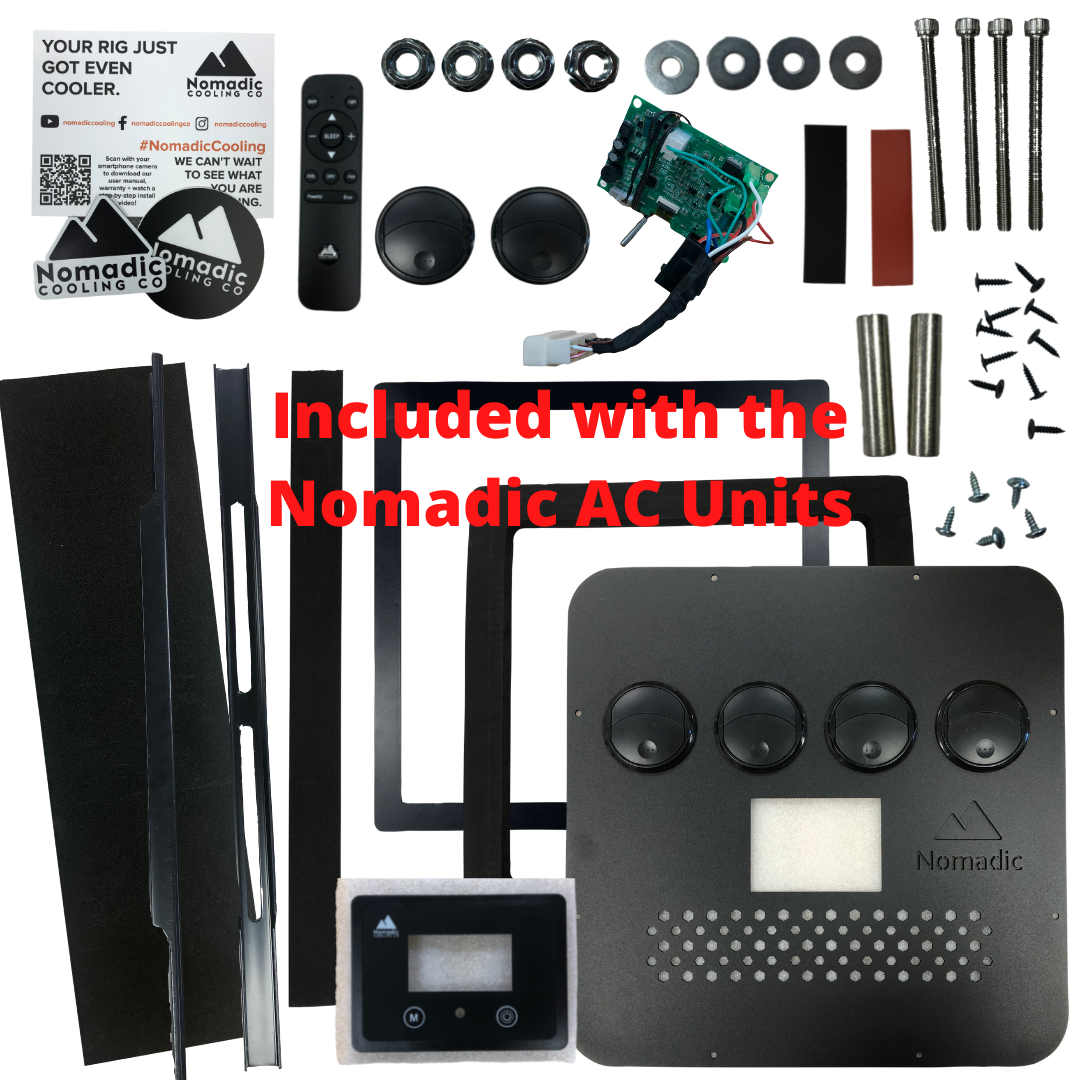

PACKAGE INCLUDES

• 1: 12V Air Conditioning  Unit
• 1: Interior  Control  Panel  -  Thermostat Included
• 1:  Remote
• 4: Metal Washers Large
• 4: Metal Lock Washers
• 4: Mounting Bolts Large
• 4: Mounting Nuts
• 600g R134A Refrigerant (pre-filled)
• 1: 14x 14 Waterproof Gasket
• 1: Interior mounting brace 14x14 (Metal Powder coat)
• 1: Flush mount interior vent aluminum (aluminum or powder coated)
• 8: Small black finish screws for interior vent placement
• 1: Air separator foam
• 1: Vibra-Tite threadlocker

NOT INCLUDED

• Fuse Breakers (Please use Blue Sea 187 Breakers 150A)
• Batteries
• Weather Proofing Sealant (For weatherproofing the installation)

ECO MODE VS POWERFUL MODE

Eco Mode should be the default operation type on a Nomadic Cooling air conditioner.  Powerful mode should only be used for short periods of time for maximum cooling, as powerful mode has increased consumption of energy.

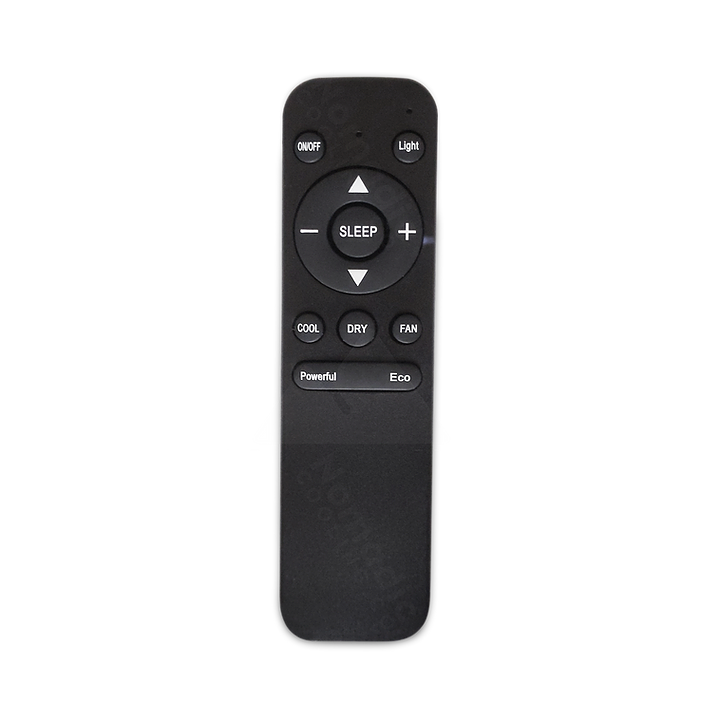

REMOTE FUNCTIONS

• On/Off: Turns the air conditioner on/off
• Light: Not Applicable
• Sleep: Turns off the LCD screen display light
• Cool: Not Applicable
• Dry: Not Applicable
• Fan: Each press will increase fan speed
• Powerful: A/C setting that will cool faster but will drain the battery very quickly
• Eco: Default A/C setting that uses minimal energy
• -/+: Changes the temperature
